Mastering Mesh Merging in Blender: A Step-by-Step Guide
Learn practical techniques to merge Blender meshes efficiently, covering joining, distance-based merging, materials, and troubleshooting for clean, export-ready models.
Learn how to merge blender objects into a single, clean mesh using Join, Merge by Distance, and careful material handling. This guide explains when to merge, how to align origins, and how to troubleshoot common issues like overlapping vertices. It’s essential for simplifying scenes, improving performance, and preparing models for export or 3D printing.
Mesh merging in Blender: joining vs merging
Blender distinguishes between joining objects and merging geometry, and understanding that distinction is the first step to predictable results when you merge blender objects. Joining (Ctrl+J) fuses separate objects into one, keeping their original topologies until you inspect the mesh in Edit Mode. Merging, performed on vertices, collapses nearby points into a single vertex, which can consolidate surfaces, remove seams, and simplify shading. In practice, many workflows begin by joining several parts to form a single object, then entering Edit Mode to perform a targeted Merge by Distance on overlapping vertices. This approach helps you keep control over where seams appear, how materials transfer, and how modifiers (like Mirror or Subdivision) affect the final mesh. As you study this topic, keep in mind that materials and UV mappings may migrate in different ways depending on whether you merge at object level or vertex level. Your goal is a clean, maintainable topology that behaves predictably under transforms and exports.
When to merge meshes vs keep separate objects
Not every scene benefits from collapsing multiple parts into a single mesh. If you plan to animate components independently, keep them separate to preserve flexibility. If you export for real-time engines, a single, well-constructed mesh often reduces draw calls and simplifies scene management. Consider UV layouts, material sets, and modifier stacks before deciding. In early-stage modeling, keep objects separate to test shapes; in late-stage assembly, merge to enforce consistent topology and unified shading. Recognize symmetry: mirrored halves Merge more cleanly when origin points are aligned and scales are consistent. This reduces rework and ensures the final model fits the intended pipeline, whether for 3D printing, game assets, or product visualization.
Basic merge workflow: join two objects
A typical merge workflow begins with two or more objects positioned where you want them in the scene. Select all objects you intend to join and press Ctrl+J to perform the join operation. After joining, switch to Edit Mode (Tab) and look for topology issues that can emerge at seams or along the merged edge. Ensure the objects share a consistent scale and rotation by applying transforms (Ctrl+A > Scale, Rotation). If their origins aren’t aligned, you may need to move or snap objects before merging. Finally, run a quick vertex-level inspection: some faces may be coplanar or create tiny gaps that affect shading. With careful planning, the joined object behaves like a single part while preserving intended materials and modifiers that follow the object.
Cleaning up after merge: removing doubles, merging by distance
After joining, you often need to collapse duplicate vertices to prevent shading artifacts. Enter Edit Mode, select all, and use Merge by Distance to fuse vertices that are closer than the chosen threshold. Start with a conservative distance and gradually increase it while checking for unwanted collapses or holes. A good practice is to enable Wireframe view to reveal hidden interior edges and stray vertices. If you see interior faces, select and delete them, then fill any gaps with appropriate edge loops. These steps help create a robust mesh that imports cleanly into other software and engines. Remember, the goal is a balance between tight topology and preserved details.
Managing materials and UVs after merging
When multiple objects with different materials are merged, you must decide how to assign materials to the new faces. In Blender, you can consolidate material slots, reassign faces, or use a single unified material with texture maps that cover the entire mesh. For UVs, decide whether to merge UV maps into one sheet or maintain separate UV islands and coordinates. If you anticipate texture painting, it’s often easier to unify UVs after the merge so painting aligns consistently across the entire model. Finally, test in a shaded viewport and, if possible, render a quick preview to verify seams and shading across the merged surface.
Common pitfalls and troubleshooting
Merges can introduce subtle issues such as duplicate faces, interior geometry, and inverted normals. If you see shading glitches, recalculate normals (Shift+N) and inspect the mesh for flipped faces. Interior geometry can occur when faces are double-backed; locate these by selecting non-manifold edges and cleaning them up. Another pitfall is leaving unused materials or empty vertices that inflate file size. Regularly run the cleanup tools in Edit Mode (Merge by Distance, Remove Doubles, Purge) and verify the result with a simple export test to catch issues early. When in doubt, revert to a saved version before the merge and try a smaller, incremental merge instead of a big one.
Advanced merge workflows: merging multiple objects, boolean vs procedural methods
For complex assemblies, you may need to merge more than two objects. The simple Join approach scales, but sometimes a Boolean modifier or a combination of joining and manual vertex editing yields better control. Use Boolean for holes, intersecting volumes, or cutting shapes, then clean up topology to restore quad-dominant geometry. For large scenes, consider procedural workflows or data-block organization to keep performance high while allowing future edits. In every case, document naming and collection structure so collaborators understand how parts are merged and where to adjust them later.
Performance considerations and export readiness
A merged mesh with dense topology can burden real-time engines and 3D printers. After merging, decimate or retopologize if necessary, and check for any non-manifold geometry that could cause export errors. Confirm that scale, orientation, and units match your target pipeline; this prevents surprises in upstream software. When exporting, choose a compatible format (FBX, OBJ, GLTF) and include or exclude modifiers according to the receiver’s needs. Finally, maintain a clean, well-documented modifier stack so future edits remain feasible without re-creating the merge from scratch.
Real-world scenarios: from scanned data to hand-modeled parts
In many projects you’ll deal with scanned geometry, parts from CAD, or hand-modeled components. Merging these requires extra attention to alignment, scale, and topology. You may need to align vertices from scan data to a clean base mesh, then merge to produce a printable or renderable model. For hand-modeled parts, ensure uniform edge flow to facilitate future edits and shading. Real-world practice includes iterative merging, where you test a merge, render, and adjust the mesh accordingly, gradually building a cohesive final asset.
Case studies and quick wins
Two short case studies illustrate practical outcomes: Case A: A vehicle prop built from separate panels that are joined and cleaned for a single shell; shading remains smooth after distance merge and UV consolidation. Case B: A scanned prop with multiple textures, merged into one mesh; material indices are consolidated, and the final model exports cleanly for use in a game engine. This section emphasizes applying the concepts to real projects and setting expectations about time and effort.
Tools & Materials
- Blender software (latest stable release)(Ensure it’s configured for your platform and projects)
- Two or more 3D objects in the scene (OBJ/FBX/GLTF or Blender natives)(Position them as you intend to merge)
- Apply Transform controls (Ctrl+A) to reset scale/rotation before merging(Helps keep topology consistent)
- Backup copy of the project(Always keep originals safe for rollback)
- Measurement tool or grid alignment reference(Useful for verifying scale and proportions)

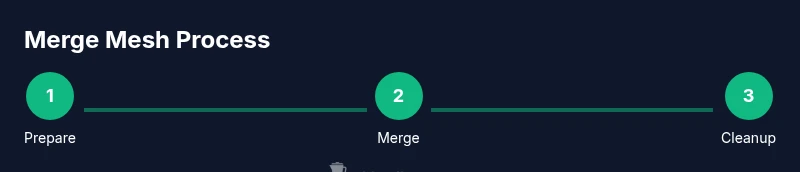

Steps
Estimated time: 20-30 minutes
- 1
Select objects to merge
In Object Mode, Shift-click to select the two or more objects you plan to merge. Confirm that only the intended parts are selected to avoid unwanted merges.
Tip: Double-check selection before proceeding to prevent unintended changes. - 2
Apply transforms to unify scale/orientation
Apply rotation and scale (Ctrl+A) to each object so they share a consistent basis before joining. This helps avoid distortion after the merge.
Tip: Apply scale first, then rotation, to lock in the current sizing. - 3
Join objects into a single mesh
With all targets selected, press Ctrl+J to join them into one object. This makes subsequent vertex-level edits easier.
Tip: Verify that the origin points align logically to avoid unexpected shifts. - 4
Enter Edit Mode and inspect the seam
Switch to Edit Mode (Tab) and inspect the merged edge for gaps or misaligned geometry. This is where topology starts to matter.
Tip: Toggle Wireframe to reveal hidden interior edges. - 5
Merge by Distance to collapse duplicates
In Edit Mode, choose Mesh > Merge > By Distance and adjust the threshold until duplicates vanish without collapsing important detail.
Tip: Start with a conservative distance and increase gradually while inspecting the result. - 6
Recalculate normals and clean interior faces
Recalculate normals (Shift+N) and identify any interior faces to delete. Cleaning up ensures correct shading and export integrity.
Tip: Use Non-Manifold selection to locate problematic edges. - 7
Consolidate materials and review UVs
Reconcile material slots and faces after the merge. Decide on a single material or reassign for a clean, predictable texture layout.
Tip: Repack UVs if needed to prevent texture stretching on seams. - 8
Rename, save, and test export
Rename the merged object, save your project, and export to the target format to verify the merge in downstream software.
Tip: Include a quick export pass to catch issues early. - 9
Review and iterate when necessary
If export reveals problems, revert to a backup, identify the root cause, and retry with a smaller incremental merge.
Tip: Iterative merging reduces risk and improves reliability.
Frequently Asked Questions
What is the difference between Join and Merge in Blender?
Join fuses multiple objects into a single object, while Merge operates on vertices within Edit Mode to collapse close points. Each has different implications for topology and materials.
Join combines objects; Merge changes the geometry at the vertex level. Choose based on whether you need a single object or a unified vertex structure.
Can I merge objects with different materials?
Yes, but you may need to consolidate material slots and reassign faces so the final mesh has a predictable material setup.
It's possible to merge, but you’ll likely need to reassign materials afterward.
Does merging affect modifiers?
Merging does not automatically apply modifiers. You may need to apply or adjust modifiers on the merged object to achieve the desired result.
Modifiers stay with the object until you apply them; plan for post-merge edits.
How do I merge a mirrored object efficiently?
Apply transforms, ensure consistent origin alignment, and consider merging halves after confirming symmetry with a mirror modifier or by duplicating and merging sides separately.
Make sure symmetry is maintained before merging halves.
Can I undo a merge?
Yes. Blender’s Undo (Ctrl+Z) can reverse recent steps. For larger changes, revert to a saved version.
You can undo recent steps or revert to a saved version if needed.
How should I handle UVs when merging?
Merging can affect UV maps. Decide whether to unify UVs or maintain separate islands, and adjust UV layouts after the merge.
UVs may need re-layout after a merge to avoid texture seams.
Watch Video
What to Remember
- Know when to merge vs. keep separate
- Join and Merge by Distance are distinct tools
- Check normals and interior faces after merging
- Consolidate materials and UVs for clean results
- Test export early to catch issues
