SolidWorks to Blender: Step-By-Step Workflow
Learn a practical, step-by-step workflow to move models from SolidWorks to Blender, preserving geometry, scale, and materials for rendering and animation. Includes export options, import setup, cleanup, retopology, UVs, and troubleshooting.
Move a SolidWorks model into Blender by exporting a compatible CAD file, importing into Blender, and then cleaning geometry, applying transforms, and setting up UVs and materials. Start with STEP or IGES for topology and scale, verify units, then import, repair any mesh issues, retopologize where needed, and finalize textures and lighting for rendering.
Why SolidWorks to Blender matters
SolidWorks to Blender workflows unlock a powerful blend of accuracy and artistry. For home engineers, product visualizers, or hobbyist 3D artists, Blender offers advanced shading, lighting, and animation tools that complement SolidWorks' precise CAD data. According to BlendHowTo, a well-planned data transfer minimizes geometry loss, reduces import errors, and speeds up downstream tasks like UV mapping and texture baking. By starting with clean data and a clearly defined export path, you can preserve the model’s fidelity while gaining control over materials, lighting, and camera setups. This section lays the groundwork for a practical, repeatable workflow you can reuse on future projects, whether you’re creating render-ready visuals or interactive demos.
Export options: Choosing the right SolidWorks export
When moving data from SolidWorks to Blender, your export choice matters as much as the model itself. STEP and IGES preserve topology and units more reliably than STL, which often requires heavy cleanup after import. SolidWorks can export STEP (.step, .stp) or IGES (.iges, .igs), with STL as a mesh-only fallback. BlendHowTo recommends starting with STEP for complex assemblies to minimize topology distortions and ensure unit accuracy. Before exporting, confirm the model’s units are set to millimeters to reduce scale drift in Blender. After exporting, test-import the file in a neutral viewer to verify seams, holes, and edge continuity. If your CAD uses features like threads or precise holes, consider exporting separate parts to simplify the Blender workflow.
Importing into Blender: Setup and import flow
Blender does not always include a built-in STEP/IGES importer by default, so plan to use a suitable add-on or convert to OBJ/STL if needed. In Blender, enable the relevant import add-on, then import the file and inspect the scene scale. Align Blender’s scene units with real-world measurements (set to Metric, 1 Blender unit = 1 meter by default, then adjust if your export uses millimeters). Apply transforms after import (Ctrl-A) to fix any scale drift, and set the origin to a meaningful point (e.g., the model’s base) for easier manipulation. If import reveals missing faces or corrupted topology, zoom in and repair with Merge by Distance, Fill Holes, and Non-Manifold Edge detection.
Cleaning and repairing geometry in Blender
CAD exports often arrive with dense triangulation, hidden faces, or minor gaps. Start by removing duplicate vertices (M), then run a diagnostic cleanup to fix non-manifold edges. Recalculate normals outward to avoid shading artifacts, and verify facial orientation on thin walls. For large assemblies, selectively clean parts to reduce processing load. Keep incremental backups before major edits to prevent data loss. If certain edges remain problematic, isolate those sections and repair them with targeted vertex merging and edge filling while preserving the overall silhouette.
Retopology and UV mapping for clean textures
Retopology helps Blender render clean shading and predictable textures when CAD data arrives with uneven topology. Create a low-poly proxy that follows the model’s silhouette, or use a grid-based approach for mechanical parts. After retopology, unwrap UVs with a logical island layout, placing seams along natural edges to minimize texture distortion. If you plan to bake textures from a high-poly CAD mesh, bake normals and ambient occlusion maps and apply them to the low-poly model. Organize UVs to maximize texel density for critical surfaces and leave room for future texture detail work. This step makes subsequent material work and rendering much more efficient.
Materials, textures, and appearance in Blender
With topology in good shape, replicate SolidWorks’ appearances using Blender’s Principled BSDF shader. Use metalness and roughness maps for metallic parts, and bake or source texture maps for paint, plastics, or coatings. If CAD textures don’t transfer cleanly, create procedural textures or use image textures to approximate the surface look, then adjust reflectivity and roughness to achieve realistic results. Separate components by material in Blender for accurate shading, and consider using separate nodes for specular highlights, gloss, and texture maps. Finally, test lighting and camera settings to verify that reflections, shadows, and materials behave realistically under your chosen environment.
Handling assemblies and performance tips
Large assemblies can slow Blender down, so plan a performance-conscious workflow. Organize geometry into named collections and enable viewport visibility toggles to work on sections. Use the Simplify option in render settings to reduce texture resolution and shadow quality during editing. Import parts separately and work on them as linked data when possible, then assemble in a final scene. Where appropriate, replace dense sub-assemblies with lightweight proxies for real-time interaction, swapping in high-detail versions for final renders. This strategy keeps your workflow responsive and reduces memory pressure.
Common pitfalls and troubleshooting
Scale mismatches, non-manifold geometry, and missing faces are common after CAD imports. Always verify unit accuracy (mm to Blender units), recalculate normals, and repair inverted faces. Watch for tiny gaps along seams that can cause texture bleeding, and check that the model’s origin aligns with your animation or camera setup. If textures appear washed out, adjust HIP (High Dynamic Range) lighting and exposure; ensure the color management is set to Filmmaker Color Management or a linear workflow. When things go wrong, back up, re-export a fresh CAD file, and retry the import with a different export option to identify where the issue originates.
Authority references and next steps
For deeper guidance, consult credible references from Blender’s official documentation and SolidWorks’ help resources. Blender’s Modeling and Shading guides provide comprehensive techniques for importing CAD data and building realistic materials. SolidWorks’ export and interoperability documentation explains best practices for STEP/IGES workflows and maintaining unit fidelity. These sources help you refine your process and stay aligned with industry standards.
Tools & Materials
- SolidWorks export file(Choose STEP or IGES for topology/units; STL as fallback)
- Blender installation (latest stable)(Ensure import/export add-ons are enabled)
- CAD import/add-on for Blender(If STEP/IGES isn’t built-in, install a compatible importer)
- Unit reference sheet(Keep mm as export unit and verify Blender unit scale)
- Backup storage and version control(Versioned backups before major edits)
- Reference images or technical drawings(Helpful for color, texture, and scale cues)

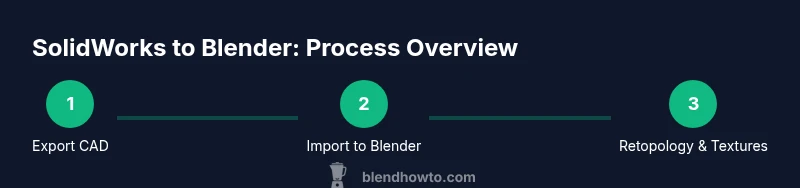

Steps
Estimated time: 90-150 minutes
- 1
Export CAD from SolidWorks
Open the SolidWorks model and choose STEP or IGES as export formats. Verify units are millimeters and apply any necessary transformations so features like threads or holes export clearly. Save to a dedicated folder for Blender imports.
Tip: Export the model in parts if it’s an assembly to simplify later cleanup. - 2
Prepare the file for Blender
If you must, perform a quick mesh clean on the CAD export in an external viewer to check integrity and reduce excessive triangulation before import. This reduces post-import cleanup in Blender.
Tip: Label each exported part clearly for easier assembly in Blender. - 3
Import into Blender
Enable the appropriate import add-on and import the STEP/IGES file (or STL/OBJ as fallback). Confirm the scale is correct (Blender units to mm) and apply transforms to reset scale.
Tip: Set the scene origin to the model base for easier positioning. - 4
Clean up geometry
Remove duplicates, fix non-manifold edges, and recalculate normals. Check for holes and reverse faces that look wrong in the viewport. Save incremental backups before large repairs.
Tip: Use Merge by Distance with a small threshold to avoid collapsing correct edges. - 5
Retopology (where needed)
Create a low-poly proxy that preserves silhouette for rendering. Unwrap UVs with careful seam placement for textures and map details from high-poly CAD data onto the proxy.
Tip: Consider baking normals from the high-poly CAD into a normal map to maintain surface detail. - 6
Texture and materials
Recreate materials in Blender using Principled BSDF and map roughness/metalness to achieve realistic finishes. Bake texture maps if needed and assign them to the appropriate parts.
Tip: Keep a separate material for each represented CAD material (metal, plastic, etc.). - 7
Lighting and rendering prep
Set up HDRI or area lighting to reveal material properties. Do a quick render test to verify shadows, highlights, and color balance, then iterate on materials and lighting.
Tip: Use a neutral gray background during testing to better judge materials. - 8
Performance and assembly handling
If the assembly is large, work by sections and use proxies for distant parts. Save multiple versions for checkpoints and gradually replace proxies with high-detail versions for final renders.
Tip: Organize objects into named collections to keep the scene navigable. - 9
Final checks and export
Do a final pass on scale, topology, UVs, and texture fidelity. Export a final Blender-ready scene or render with finalized settings for delivery.
Tip: Document export settings for future projects to maintain consistency.
Frequently Asked Questions
Can I import SolidWorks files directly into Blender?
No. Blender does not read SolidWorks native formats. Use STEP/IGES or convert to STL/OBJ before import.
Blender can't read SolidWorks files directly; export to STEP or IGES, or use STL as a fallback.
Which export format preserves dimensions best?
STEP typically preserves topology and units; IGES is similar, while STL is mesh-only and less edit-friendly.
STEP is usually best for accuracy, followed by IGES; STL is mainly for printing and not ideal for editing.
Do I need to retopologize after importing CAD data?
Yes, retopology is common when you plan animation or detailed texturing in Blender. CAD data often has heavy topology.
Yes, retopology is typically needed to optimize shading and animation in Blender.
How do I handle units and scale between SolidWorks and Blender?
Export with millimeters, set Blender to metric, and apply transforms on import to fix discrepancies.
Match units at export and import; set Blender to metric and apply transforms.
Will textures transfer from SolidWorks to Blender?
Textures usually don’t transfer directly. Recreate materials in Blender and bake textures as needed.
Textures don’t carry over; recreate materials in Blender and bake textures if needed.
What helps with large assemblies in Blender?
Work in sections, use proxies, enable Simplify, and assemble at the end to keep performance smooth.
Work in chunks, use proxies, and keep the scene organized to stay responsive.
Watch Video
What to Remember
- Export CAD with STEP/IGES to preserve topology and units
- Verify and apply correct scale at import
- Retopologize and unwrap UVs for clean textures
- Organize Blender project with backups and collections
